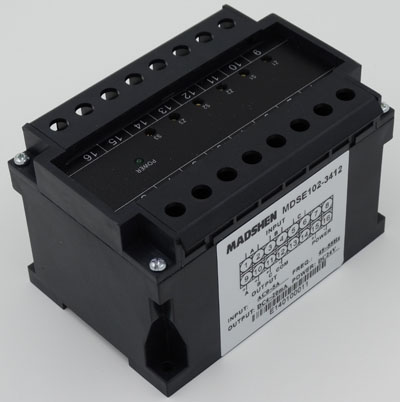

Function overview
MDSE106 series Six AC Voltage Collector Testing Six The AC voltage signal through RS485 The bus transfer to DCS System.
Specifications
Six AC current collector | Input current code | measuring method | The auxiliary power supply | communication Agreement |
MDSE106- | 6:0~120V | 0: (note) | 1:DC24V | 1:MODBUS-RTU |
7:0~250V | 1: the true effective value | 3:AC220V | 2:PROFIBUS-DP |
8:0~300V |
|
|
|
9:0~450V |
|
|
|
0 other ranges: |
|
|
|
Remarks： The average measured according to the effective value, not the true effective value measurement, if the input waveform distortion will generate additional error.
Technical indicators
Signal input: AC voltage, see table
Input power: less than or equal to absorption 0.5VA (input 450V )
Less than or equal to 0.2VA (input 100V )
Input overload capacity: Two Times, continuous input voltage
Input frequency range: 45Hz~55Hz
Refresh data: One second
Measurement error: + 0.5%F.S (typ. 0.2%F.S )
communication Address: 1~247
Baud rate: One thousand and two hundred , Two thousand and four hundred , Four thousand and eight hundred , Nine thousand and six hundred , Nineteen thousand and two hundred
Isolation mode: input, output, power supply isolated
Insulation resistance: 200M Omega /DC500V
Dielectric strength: input / output / Power Supply 2000VAC/1min
The auxiliary power supply: DC24V . 10% Less than or equal. 1W
AC86~265V Less than or equal. 2VA
For details please download: MDSE106 series six AC Voltage Collector
