Function overview

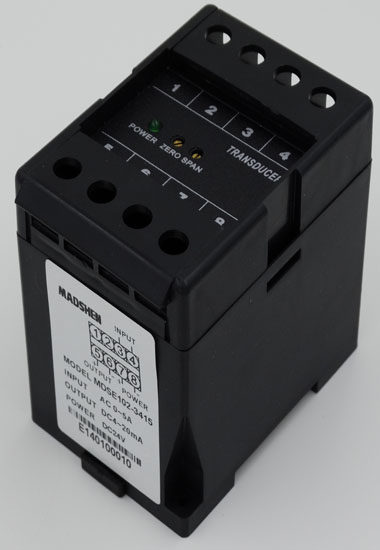

MDSE103 series Single phase power Transmitter The various forms of power is converted into DC voltage or current signal according to the proportion, and can reflect the transmission direction of the measured power.
Specifications
Single phase powerTransmitter | Transmission function code | Input voltage code | Input current code | Output signal code | The auxiliary power source code |
MDSE103- | P1-: single phase active | 1:0~100V | 1:0~1A | 1:0~20mA | 1:DC24V |
Q1-: single phase reactive power | 2:0~200V | 2:0~5A | 2:0~ + 20mA | 3:AC220V |
| 3:0~270V | 3:0~10A | 3:4~20mA |
|
| 4:0~400V | 0 other ranges: | 4:4~12~20mA |
|
| 0 other ranges: |
| 5:0~1V |
|
|
|
| 6:0~ + 1V |
|
|
|
| 7:0~5V |
|
|
|
| 8:0~ + 5V |
|
|
|
| 0 other ranges: |
|
Technical indicators
Input power: less than or equal to absorption 0.2VA (input 100V )
Less than or equal to 0.1VA (input 5A )
Input overload capacity: Two Times of continuous input current
Thirty Times, One Second current input
Two Times, continuous input voltage
Input frequency range: 45Hz~55Hz
Output signal: DC voltage or current, see table
Output: output voltage, load or load 5K Omega
The current output load is less than or equal to Five hundred and fifty Omega
Conversion accuracy: + 0.5%F.S (typ. 0.2%F.S )
Response time: 300ms
Isolation mode: input, output, power supply isolated
Insulation resistance: 200M Omega /DC500V
Dielectric strength: input / output / Power Supply 2000VAC/1min
The auxiliary power supply: DC24V . 10% Less than or equal. 1W
AC86~265V Less than or equal. 3VA
For details please download:MDSE103 series single-phase powerTransmitter
