Summary

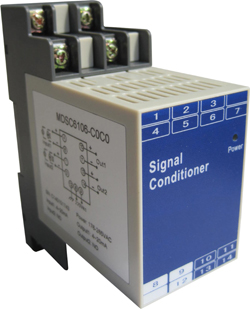

MDSC6000 series AC power supply signal conditioner for power supply products work 220VAC ,
Do not need additional DC power supply, easy to use, and reduce the system cost greatly.
main products
MDSC6103 Thermocouple temperature Transmitter
MDSC6104 Heat resistance temperature Transmitter
MDSC6105 Slide wire resistance Transmitter
MDSC6106 Signal conversion isolator
MDSC6107 Power conversion isolator
MDSC6108 Switch isolator
MDSC6109 Switch isolator ( Large capacity output )
Installation method: 35mm Rail clamp
Connection mode: M4 Screw
The use of the environment
Working temperature: 0~ Fifty C
Storage temperature: -40~ Eighty-five C
Relative humidity: 10~90%RH
Atmospheric pressure: 86~106kPa
function
Receive Control The switch signal room, isolation drive equipments, such as solenoid valves. Optional One enter One A, One enterTwo A, Two enter Two A.
Type specification
Company code | 1 input code | 2 input code | The output of the 1 code | The output of the 2 code |
MDSC6109- | 1: passive switch | 1: passive switch | 1: relay contact | 1: relay contact |
2: active switch | 2: active switch |
| 0: output 2 |
G: other signals | G: other signals |
|
|
| 0: input 2 |
|
|
Common specifications selection examples:
Model:MDSC6109-1010
Passive Input: switch signal
Output1: relay contact
Aux.power:220VAC
Description: This product is a type of large capacity AC power supply switch isolator , Passive switch signal The input and output isolation relay contact signal; auxiliary power supply for AC 220VAC.
For details please download: MDSC6109 switch isolator (capacity)
