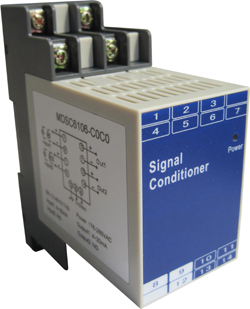

Summary
MDSC6000 series AC power supply signal conditioner for power supply products work 220VAC ,
Do not need additional DC power supply, easy to use, and reduce the system cost greatly.
main products
MDSC6103 Thermocouple temperature Transmitter
MDSC6104 Heat resistance temperature Transmitter
MDSC6105 Slide wire resistance Transmitter
MDSC6106 Signal conversion isolator
MDSC6107 Power conversion isolator
MDSC6108 Switch isolator
MDSC6109 Switch isolator (large capacity output)
Installation method: 35mm Rail clamp
Connection mode: M4 Screw
The use of the environment
Working temperature: 0~ Fifty C
Storage temperature: -40~ Eighty-five C
Relative humidity: 10~90%RH
Atmospheric pressure: 86~106kPa
function
The receiving switch signal from the scene, such as signal proximity switch, isolation and output. Optional One enter One A, Oneenter Two A, Two enter Two A.
Type specification
Company code | 1 input code | 2 input code | The output of the 1 code | The output of the 2 code |
MDSC6108- | 1: passive switch | 1: passive switch | 1: passive relay | 1: passive relay |
2: active switch | 2: active switch | 2: passive collector | 2: passive collector |
G: other signals | G: other signals | 4: active output | 4: active output |
| 0: input 2 | G: other signals | G: other signals |
|
|
| 0: output 2 |
Technical indicators
The working power supply: 220VAC . 10%
Work Consumption: less than or equal to 3VA ( Two enter Two (a) passive output)
Less than or equal to 4VA ( Two enter Two (a) active output)
Input signal:
Passive switch input (contact):
Short circuit current: 8mA
The open circuit voltage: 8V
The loop current is less than or equal to 1.2mA "Guan said"
The loop current is greater than or equal to 2.1mA Said ""
Active switch input:
Order negotiation technology index
Output signal:
Passive relay output:
Contact type: normally open
Contact capacity: 0.2A /30VDC
Passive collector output:
External power supply: less than or equal to 30VDC
The load current is less than or equal to: 60mA
Active output: high level over 20V The low level is less than or equal; 3V
The maximum output power 24VDC/30mA
The switching frequency is less than or equal to: 5kHz (collector output)
Less than or equal to 20Hz (relay output)
Dielectric strength: input / The output is more than 2000VAC ( 1min )
input / The power is greater than or equal to 2000VAC ( 1min )
output / The power is greater than or equal to 1000VAC ( 1min )
Insulation resistance: input / output / The power is greater than or equal to 100M (omega 500VDC )
Note: 1 in 1 out of 1, 3, 13, and 14 feet up with 1; in 2 out of 1 models, 3 feet up, don't answer.
Common specifications selection examples:
Model:MDSC6108-1010
Passive Input: switch signal
Output1: passive relay
Aux.power:220VAC
Description: This product is a type of AC power supply switchisolator, Passive switch signalThe input and output passive isolation relay signals; auxiliary power supply for AC 220VAC.
For details please download: MDSC6108 series switch isolator
