Summary

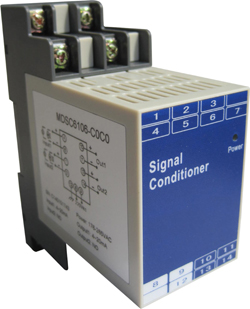

MDSC6000 series AC power supply signal conditioner for power supply products work 220VAC ,
Do not need additional DC power supply, easy to use, and reduce the system cost greatly.
main products
MDSC6103 Thermocouple temperature Transmitter
MDSC6104 Heat resistance temperature Transmitter
MDSC6105 Slide wire resistance Transmitter
MDSC6106 Signal conversion isolator
MDSC6107 Power conversion isolator
MDSC6108 Switch isolator
MDSC6109 Switch isolator (large capacity output)
Installation method: 35mm Rail clamp
Connection mode: M4 Screw
The use of the environment
Working temperature: 0~ Fifty C
Storage temperature: -40~ Eighty-five C
Relative humidity: 10~90%RH
Atmospheric pressure: 86~106kPa
function
To the scene Two Wire Transmitter Supply, sampling Transmitter Output Two Wire current signal, after isolation, transformed into linear output signal of a user specified. Optional One enter One A, One enter Two A, Two enter Two A.
Type specification
Company code | 1 input code | 2 input code | The output of the 1 code | The output of the 2 code |
MDSC6107- | C:4~20mADC | C:4~20mADC | 1:0~1VDC | 1:0~1VDC |
| 0: input 2 | 2:0~5VDC | 2:0~5VDC |
|
| 3:1~5VDC | 3:1~5VDC |
|
| 4:0~10VDC | 4:0~10VDC |
|
| A:0~10mADC | A:0~10mADC |
|
| B:0~20mADC | B:0~20mADC |
|
| C:4~20mADC | C:4~20mADC |
|
| G: other signals | G: other signals |
|
|
| 0: output 2 |
technical parameter
The working power supply: 220VAC . 20%
Work Consumption: less than or equal to 2VA ( One enter One A)
Less than or equal to 3VA ( One enter Two A)
Input signal: Two Wire 4~20mA
Input impedance: current input is less than or equal to Two hundred Omega;
The input voltage is greater than or equal. 500K Omega
Distribution voltage: 19~26V
Distribution: the maximum short-circuit current protection, 40mA
The maximum open circuit voltage, 26V
Output signal: DC current or voltage signal
Output: output current, 0~350 Omega;
The output voltage is greater than or equal. 10K Omega
Conversion accuracy: + 0.2%F.S
Temperature drift:. 0.01% F.S/ C
Dielectric strength: input / output / Power over 1500VAC ( 1min )
Insulation resistance: input / output / Power over 100M (omega 500VDC )
Remarks： One enter One A model, One , Three , Thirteen , Fourteen Don't pick feet up; One enter Two A model, One , ThreeDon't pick feet up.
Common specifications selection examples:
Model:MDSC6107-C0C0
Input:0-5VDC signal
Output1:4~20mAdc
Aux.power:220VAC
Description: This product is converted into a AC power distributionisolator, 4-20mmADCsignalInput output isolation switch 4~20mAdc DC current signal; auxiliary power supply for AC 220VAC.
For details please download: MDSC6107 series power conversion isolator
