Custom processing | yes | brand | Madshen | Model | MDST-WH13 |
type | Precision pressure gauge | measuring range | 0-14 ( MPa ) | Precision grade | +/-3-2-3% |
Connection type | 1/2NPT (or no teeth) | Nominal diameter | Eighty-one ( Mm ) | ambient temperature | -40 to Seventy ( C ) |
Temperature range | 20-160 & deg Fahrenheit | Induction tube length | 60mm Even teeth | Material Science | Matte black iron shell, stainless steel cover |
Product name:

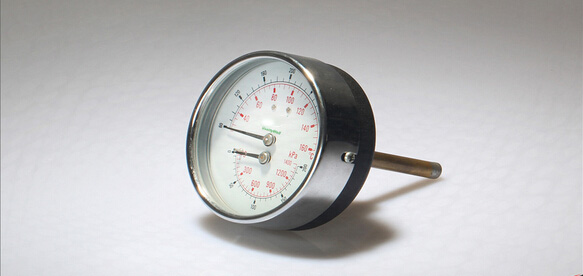

MDST-WH13 Stainless steel thermometer, thermometer, thermometer, pointer type pipe HVAC thermometer, thermometer
Use field:
Industry, petroleum, chemical industry, heating system, pipeline, water heater, heat preservation box, machinery, pharmaceutical, food, water treatment, etc..
Specification description:
Model | MDST-WH13 |
type | The temperature of body surface pressure |
structural style | Axial type |
Watch | Glass |
Material Science | Matte black iron shell, stainless steel cover |
Tooth head | 1/2 "NPT Other optional ( Or no teeth ) |
Surface diameter | 81mm |
The temperature sensing pipe diameter | 8mm copper |
The temperature sensing pipe length | 60mm Even teeth ( Can be customized) |
temperature range | (20-160C&F Can be customized) |
Pressure range | 0-1400KPa |
The accuracy of the pressure | +/-3-2-3% |
Temperature accuracy | + 1.5% |
Note |
|
Product features:
Remote reading, shockproof demand, on-site temperature display, intuitive and convenient; safe and reliable, long service life, fast reading.
Matters needing attention:
The thermometer is in use to pay attention to cleaning and inspection, regular inspection of the measured value.
Service introduction:
MDST-WH13 One table of temperature and pressure from the U. S. technology can measure pressure and temperature measurement, a multi-purpose table.manufacturing process : From the welding leak, saturation pressure, showing the value of proofreading and product value test, assembly and packaging factory. The product can also be customized according to your request, can the corresponding parameters according to your need to customize, use.
