Function overview

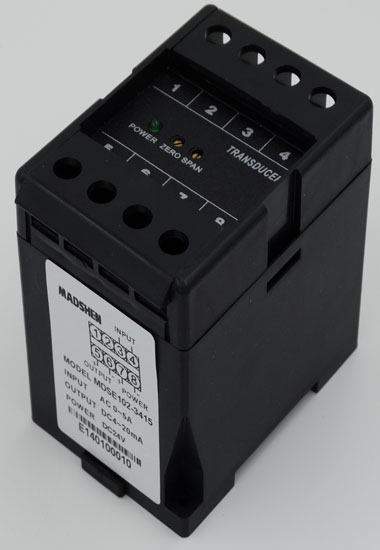

MDSE102 series Single AC voltage Transmitter The AC voltage is detected in proportion to convert the DC voltage or current signal. Transmitter Is a measure of average value according to the effective value, not the true effective value measurement, if the input waveform distortion, the output will generate additional error.
Specifications
Single AC voltage Transmitter | Input voltage code | Output signal code | The auxiliary power supply + function code |
MDSE102- | 6:0~120V | 1:0~5V | 13:DC24V |
7:0~250V | 2:1~5V | 33:AC220V |
8:0~300V | 3:0~20mA |
|
9:0~450V | 4:4~20mA |
|
0 other ranges: | 0 other ranges: |
|
Technical indicators
Signal input: AC voltage, see table
Input power: less than or equal to absorption 0.5VA (input 450V )
Less than or equal to 0.2VA (input 100V )
Input overload capacity: Two Times, continuous input voltage
Input frequency range: 45Hz~55Hz
Output signal: DC voltage or current, see table
Output: output voltage, load or load 5K Omega
The current output load is less than or equal to Five hundred and fifty Omega
Conversion accuracy: + 0.5%F.S (typ. 0.2%F.S )
Response time: 300ms
Isolation mode: input, output, power supply isolated
Insulation resistance: Twenty 0M Omega /DC500V
Dielectric strength: input / output / Power Supply 2000VAC/1min
The auxiliary power supply: DC24V . 10% Less than or equal. 1W
