Function overview

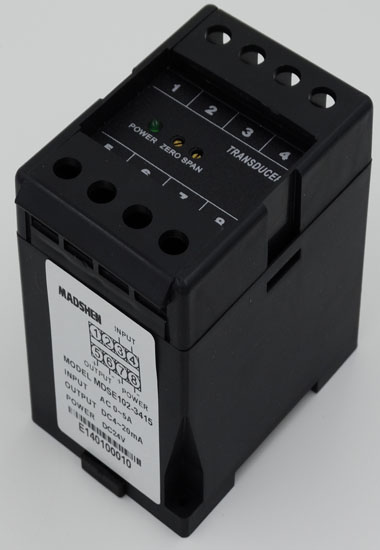

MDSE102 series single alternating current Transmitter The alternating current is detected in proportion to convert the DC voltage or current signal. Transmitter Is a measure of average value according to the effective value, not the true effective value measurement, if the input waveform distortion, the output will generate additional error.
Specifications
Single alternating currentTransmitter | Input current code | Output signal code | The auxiliary power supply + function code |
MDSE102- | 1:0~1A | 1:0~5V | 15:DC24V |
2:0~2A | 2:1~5V | 31:AC220V |
3:0~5A | 3:0~20mA |
|
4:0~10A | 4:4~20mA |
|
0 other ranges: | 0 other ranges: |
|
Technical indicators
Input signal: alternating current, see table
Input power absorption: Less than or equal to 0.1VA (input 5A )
Input overload capacity: Two Times of continuous input current
Thirty Times, One Second current input
Input frequency range: 45Hz~55Hz
Output signal: DC voltage or current, see table
Output: output voltage, load or load 5K Omega
The current output load is less than or equal to Five hundred and fifty Omega
Conversion accuracy: + 0.5%F.S (typ. 0.2%F.S )
Response time: 300ms
Isolation mode: input, output, power supply isolated
Insulation resistance: 200M Omega /DC500V
Dielectric strength: input / output / Power Supply 2000VAC/1min
The auxiliary power supply: DC24V . 10% Less than or equal. 1W
AC86~265V Less than or equal. 3VA
