Product introduction

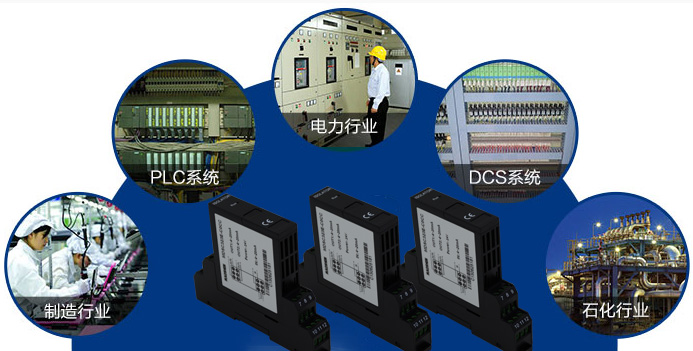

MDSC341E series DC current source isolator Mounted as a guide rail, the base and the host can be separated from the plug, easy installation and maintenance. Series of products rich, can handle the current, voltage, thermal resistance, thermocouple, switch and other industrial products are widely signal. The application in building material, metallurgy, electric power and other industries, effectively restrain all kinds of interference signal.



Type specification

Product model	1 input signal	2 input signal	The 1 output signal	The 2 output signal
MDSC341E-C0C0	4~20mADC	No input 2	4~20mADC	Output 2
MDSC341E-CCCC	4~20mADC	4~20mADC	4~20mADC	4~20mADC







Product features:

The input and output power, the three party is completely isolated, strong anti-interference ability

High precision, high linearity, high stability

Modular design, small volume, low power consumption, suitable for intensive installation

Reasonable structure, easy plugging, installation, disassembly and maintenance is more convenient and simple





Technical indicators

Power supply: input signal power supply circuit

Input signal: 4~20mA

Output signal: 4~20mA

Output load: 0~500 Omega

Input voltage: ( Output load * Output current +3V) ~18V

The maximum input current: 50mA

Maximum input voltage: 18V

Conversion accuracy: + 0.1%F.S

Temperature drift:. 0.01% F.S/ C

Dielectric strength: input / The output is more than 1500VAC ( 1min )

Insulation resistance: input / The output is more than 100M (omega 500VDC )



Remarks： One enter One A model, One , Three , Eleven , Twelve Don't pick feet up.

Be careful Control Application, Control Connected to the signal Four , Six , One , Three End.



For details please download: MDSC341E series DC current source isolator
