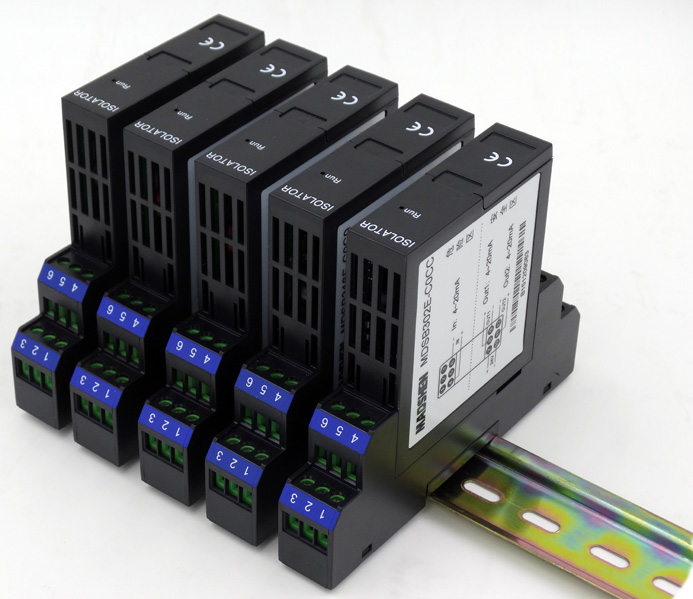

MDSB322E series high power end detection Isolated Safety gate (HART) This product is compatible with the distribution and isolation Two Modes: distribution mode, to a dangerous place Two Wire Transmitter Supply, sampling Transmitter Output Two Wire current signal through the isolation after processing into Four Wire current isolation mode, sampling signal output; Four Wire current signal through the isolation output Four Wire current signal. The toggle switch product side built-in can set the input mode. This product is compatible with HART communication Can be used for intelligent. Transmitter . Optional One enter One A, One enter Two A, Two enter Two A.Isolated gate From the terminal energy into the limit of intrinsically safe dangerous places, so as to ensure the safety and explosion-proof system.

Type specification

Explosion-proof technology index

Explosion proof mark: [Exia Ga] II C

Authentication parameters: (terminal 4/6 Between, 1/3 Between)

Um=250V Uo=28V Io=119mA

Po =833mW Co=10nF Lo=1mH

Product features:

The input and output power, the three party is completely isolated, strong anti-interference ability

High precision, high linearity, high stability

Modular design, small volume, low power consumption, suitable for intensive installation

Reasonable structure, easy plugging, installation, disassembly and maintenance is more convenient and simple

Please download the selection: MDSB322E series high detection end distribution gelizha (HART)
